This topic describes the features of I8042prt, the Microsoft Windows 2000 and later system function driver for PS/2-style keyboard and mouse devices.

I8042prt implements the I8042prt service and its executable image is i8042prt.sys.

DriverController

The features of I8042prt include:

Controller

Windows 10 64 bit, Windows 10, Windows 8.1 64 bit, Windows 8.1, Windows 8 64 bit, Windows 8, Windows 7 64 bit, Windows 7.

  • Hardware-dependent, simultaneous operation of a PS/2-style keyboard and mouse device.

    The keyboard and mouse share I/O ports, but use different interrupts, interrupt service routines (ISR), and ISR dispatch completion routines.

  • Plug and Play, power management, and WMI

  • Operation of legacy devices.

  • Connection of a keyboard class service callback routine and a mouse class service callback routine.

    I8042prt uses the class service callback to transfer data from the input data buffer of I8042prt to the data buffer of the class driver.

  • Addition of a vendor-supplied PI8042_KEYBOARD_INITIALIZATION_ROUTINE callback routines for a keyboard device.

    An optional upper-level device filter driver provides the callback routines.

  • Addition of a vendor-supplied PI8042_KEYBOARD_ISR callback routine and a custom PI8042_MOUSE_ISR callback routine.

    Optional upper-level device filter drivers provide these callbacks routines.

  • Keyboard write buffer request and mouse write buffer request.

    An upper-level device filter driver can use write buffer requests to synchronize its writes to a device with the ISR of the device and other reads and writes on the device.

  • Keyboard start information request and mouse start information request.

    The start information request passes a pointer to an interrupt object of a device to an upper-level filter driver. The filter driver can use the interrupt object to synchronize its operation with the ISR of the device.

  • I8042prt callback routines.

    An upper-level device filter driver can use the callback routines in the context of the ISR of a device to write to a device, and to queue data packets from the device.

Ps2 Controller Pc Driver Windows 10

Registry settings associated with the PS/2 driver

The following is a list of registry keys associated with the PS/2 port driver.

  • EnableWheelDetection [REG_DWORD] – Determines whether the driver attempts to detect and enable the wheel on the mouse device. Some devices are equipped with a mouse wheel to provide rapid scrolling and other control features if supported by an application.
  • ResendIterations [REG_DWORD] – Specifies the maximum number of times a hardware operation is attempted. If the number of trials exceeds the value of this entry, Windows considers the operation to have failed.
  • NumberOfButtons [REG_DWORD] – Specifies the number of buttons on the mouse-port mouse at startup. If the number of buttons detected at startup is incorrect, you can override it by changing the value of this entry.
  • KeyboardDataQueueSize [REG_DWORD] – Specifies the number of keyboard events that the keyboard driver buffers. This entry is also used in calculating the size of the keyboard driver's internal buffer in nonpaged memory pool. To determine the number of bytes to allocate for the buffer, the system multiplies the size of the KEYBOARD_INPUT_DATA structure by the value of KeyboardDataQueueSize.
  • PollStatusIterations [REG_DWORD] – Specifies the maximum number of times the system verifies interrupts on the i8042 controller status register. If the interrupt cannot be verified in the number of trials specified in the value of this entry, the interrupt is ignored.
  • PollingIterations [REG_DWORD] - Specifies the maximum number of times Windows 2000 polls the hardware. If the number of trials specified in this entry is exceeded, Windows 2000 stops polling.
  • SampleRate [REG_DWORD] – Specifies how often the PS/2 driver measures the characteristics and activities of the PS/2 mouse. The driver uses the information gathered through sampling to optimize the operation of the mouse device.
  • PollingIterationsMaximum [REG_DWORD] – Specifies the maximum number of times Windows 2000 polls the hardware on older-style AT keyboards. If the number of trials specified in this entry is exceeded, Windows stops polling.
  • MouseResendStallTime [REG_DWORD] – Determines how long the mouse driver waits for an acknowledgement (ACK) of a reset if a RESEND message is returned without an ACK. This entry is used when the mouse driver interrupt service routine includes a reset.
  • OverrideKeyboardType [REG_DWORD] – Specifies the keyboard type. You can add this entry to the registry to correct an error in the keyboard type detected at startup.
  • OverrideKeyboardSubtype [REG_DWORD] – Specifies the OEM-dependent keyboard subtype. You can add this entry to the registry to correct an error in the keyboard subtype detected at startup.

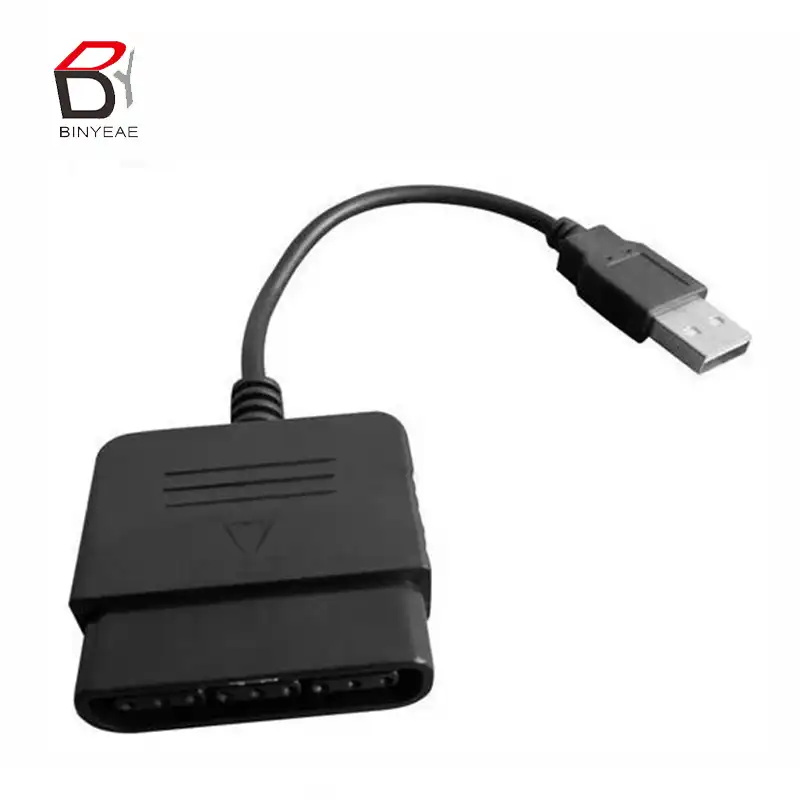

Without a driver, Windows will just have basic functionality but won't support Force Feedback (rumble/vibration). To get vibration you need a driver. This is a generic driver for all 'VID0810&PID0001' devices, which adds rumble support to the USB adapter on Windows 10 (and earlier). Ps2 Dualshock 2 Controller Drivers. PS/2 mices are not widely used any more. Some motherboards do not have this port any more. In addition, PS/2 mouse will not work with Windows 10 by default, but we can fix it. For some reason PS/2 mouse is disabled on registry level and it can be turned back on. The procedure will take 2 minutes and computer restart. So, let’s start. You were super excited about exploring the virtual and magical world. But, when you plugged in your USB controller in your Windows 10 PC, you realized something is wrong. We understand this is your nightmare come true but don’t panic yet. You are not the only one who has had a hard time using a USB controller on a Windows 10 PC. Using a Playstation Controller With Windows: There are many people who love video games using a Windows computer that prefer to use a controller rather than the keyboard and mouse in order to enjoy their hobby, and Microsoft helps this desire by making Xbox 360 controllers work flawlessly with.
