I have a Skoda Octavia VRS with an RNS 510 navigation system. I would like to upgrade it, but the oldest version of firmware is on it, the 1024. Could you help me to make a succes upgrade to the 6276? The RNS510 is the optional Hard Drive-based Navigation System available on Volkswagens from 2009-2015. This unit features a multitude of features, centered on its Hard-Drive Based System and 6.5' LCD Touchscreen. In our online web store, our units are categorized by the RNS510's 'revision letter'. The OEM North America.

Shermenator

Well-known member
Joined
Jun 22, 2009
Location
California
TDI
2009 Jetta sportwagon TDI
I own a 2009 Jetta Sportwagon with a RNS 510 Navigation system /CD radio .
The problem I'm having Is that the navigation system isn't recognizing many addresses That The businesses have been established From 50 to 5 years .
So I spent $2000 on a navigation system that will not recognize address is that I input Into it which is a problem !! In particular The address last program in was Tony's on the Pier
210 Fisherman's wharf
Redondo beach
California 90277
My Garmin 660 Which is 8 years old, My wife's 2008 Honda civic,2010 Nissan ,2008 Lexis ,2009 Toyota Camry all of these vehicles With their own navigation systems and my portable Garmin which I keep in my Jetta now for backup all will pull up this address.
Than new Volkswagen Jetta 2010,2011,2012 with my same operating system will not pull Up this address but the 2012 with the new RNS315 Navigation system CD radio combo We'll There's also another Navigation System combo In A upscale Volkswagen with another Type of navigation system With a similar operating system as mine Which we'll pull it up also.
I've had this problem 15 to 20 times now since I've owned the this car And now pretty much fed up with it. Went to 2 different dealerships and they agreed it's a problem Called Volkswagen's customer care and they've been working on this problem for a week.Also gave me many excuses which I told them If you can't fix it refund me the money for my navigation system Or I will lemon law it .
Sorry for the long Story This is very upsetting specially when you spend $2000 for navigation system and you're running a portable navigation system on top your dash .
Anybody else with this problem if so do you still have the address that won't program into your navigation system?
Thanks for your help in advance
David

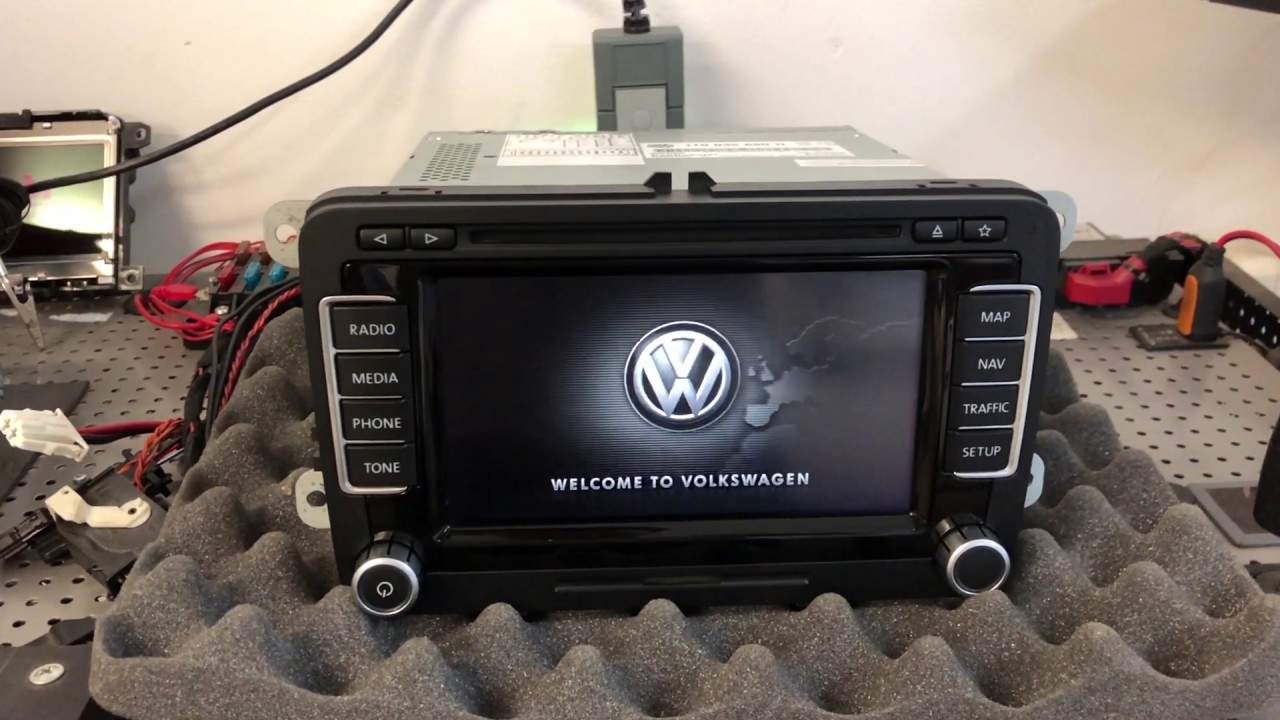

The RNS510 is the optional Hard Drive-based Navigation System available on Volkswagens from 2009-2015. This unit features a multitude of features, centered on its Hard-Drive Based System and 6.5″ LCD Touchscreen.

In our online web store, our units are categorized by the RNS510’s “revision letter”. The OEM North American RNS510 uses the part number 3C0035684xx, where the xx identify the unit’s revision. Be weary of European models with part number 1Toxxxxxx, which have problems when USA Maps are loaded and do not have Sirius Radio, HD Radio and various other standard features.

Rns 510 Navigation System Problems Transmission

Rns

RNS510 Revision Overview:

  • Initial, A and B Revision- Earlier revision RNS510’s. Upgradeable to 1140 firmware. Has the following features:
    • 6.5″ LCD Touchscreen (800×480 16:9)
    • AM/FM Radio
    • HD Radio
    • Sirius Satellite Radio (Requires subscription via SiriusXM)
    • Sirius Traffic (Requires subscription via SiriusXM)
    • Turn by turn GPS Navigation
    • Rear View Camera Input (Requires OEM VW Rear view camera kit)
    • 30GB Hard Drive for music storage from CD’s and from SD (10GB reserved for maps)
    • SD Card Music Playback (Uses slot on faceplate of unit)
    • Auxilary input capability (Using existing OEM Aux input in glovebox/armrest)
    • MDI Capability
    • Single-disc CD/DVD Player (DVD’s can be played while vehicle is in park. Video in motion activation is available)
    • Bluetooth Phone Control (Requires external Bluetooth module)
  • C/D Revision- Introduces brighter LED backlight, and slightly faster boot up times. Upgradeable to version 1140 firmware
  • E/F/G/H Revision- Comes on 2012-2013 Volkswagens. Introduces Sirius Travellink, which feeds live Sports scores, Gas Prices, movie Times, Weather and other cool features to your head unit. A subscription is required to enable this service. Upgradeable to 4366 Firmware.
  • J/K/L/M/N/P Revision- Comes on 2014 and later Volkswagens. Introduces Solid State Hard Drive, which speeds up interface. Includes other software related fixes. Upgradeable to firmware 5382.

When retrofitting this unit into a Volkswagen which did not have GPS from the factory (MFD2 or RNS315), you will at minimum need a GPS Antenna. For 2005.5-2009 models, you will need an AM/FM Adapter, and Sirius Antenna/Sirius Extension Cable. An external bluetooth module is necessary if your vehicle did not originally come from the factory with bluetooth capabilities or does not have a 9W2/9W7 bluetooth module installed.

Rns 510 Navigation System Problems 5th

Coding via VCDS may also be required to change the RNS510’s amplifier settings, as well as to toggle BAP+ Communications. If you notice no sound coming from your unit after installation, the amplifier settings need to be adjusted via VCDS to let your RNS510 know if you have a 1)Dynaudio Sound System, 2) Fender Sound System or 3)No Amplified Sound System. BAP+ communications should be enabled if your cluster uses white letters (2010 and up), and disabled for vehicles with Red Instrument Clusters (2005-2010).

Vw Rns 510 Navigation System

Navigation Data and Music Information only displays on highline Instrument Clusters (MFD+). If you are able to toggle through your instrument cluster menu to view MPG, speed, and other settings, you have a highline cluster. If your cluster is not able to toggle through menus and only fills half of the rectangular area, your vehicle has a low-line cluster. A low-line cluster is shown on the left side, while the highline cluster is displayed on the right.
